There are several base product are available in the market. Here is the list given below.
BROCHURES
For more information contact your MCS Sales Rep
Mike Leciejewski
mike@add-jet.com tim@add-jet.com
Ohio
OH, MI, KY, IN

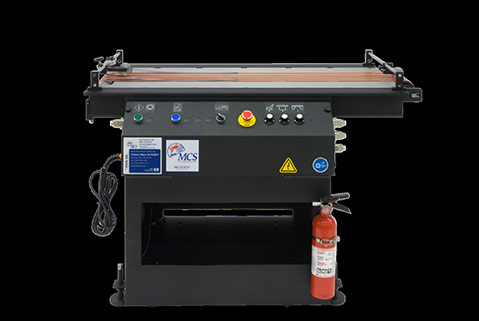

MCS 430 Base
With a length of 48", the MCS 430 base was designed for inkjets, camera systems, IR dryers, and UV lamps.
SPECIFICATIONS
| Envelopes | Self-Mailers | Sheets | Length | Max Paper Width | Belt Technology | Divert Option | Power | Intended Use | Speed | Comments |
| Y | Y | n/r | 48" | 16" | 6 belts of 1” adjustable heat-resistant | Yes | 110V 15 Amp | Inkjet, camera sys., or dryers | Up to 500 FPM | Small foot print, diverter optional |

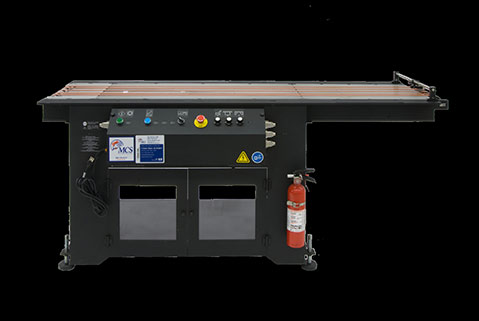

MCS 530 Base
The MCS 530 at 79" in length is long enough to mount multiple types of equipment together including: inkjets and dryers; inkjets and camera systems; and MCS front and back diverters.
SPECIFICATIONS
| Envelopes | Self-Mailers | Sheets | Length | Max Paper Width | Belt Technology | Divert Option | Power | Intended Use | Speed | Comments |
| Y | Y | n/r | 79" | 16" | 6 belts of 1” adjustable | Yes | 110V 15 Amp | Inkjet, Camera Sys., | Up to 500 FPM | Low cost, room for a dryer |

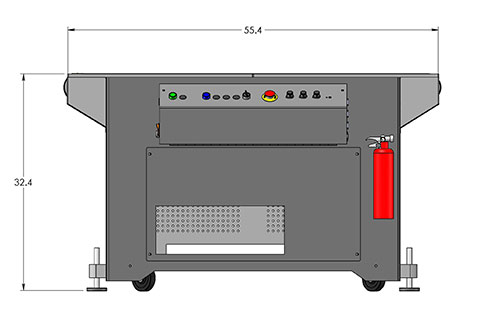

MCS 630 Base
The MCS 630 at 56” in length is long enough to mount multiple types of equipment together including: inkjets and camera systems. The single wide belt is designed for the highest quality registration.
SPECIFICATIONS
| Envelopes | Self-Mailers | Sheets | Length | Max Paper Width | Belt Technology | Divert Option | Power | Intended Use | Speed | Comments |
| Y | Y | Y | 56" | 16" | Heat-resistant Single Solid HD 10" Belt | Yes | 110V 15 Amp | HD Inkjet, | Up to 500 FPM | High definition inkjet imaging |

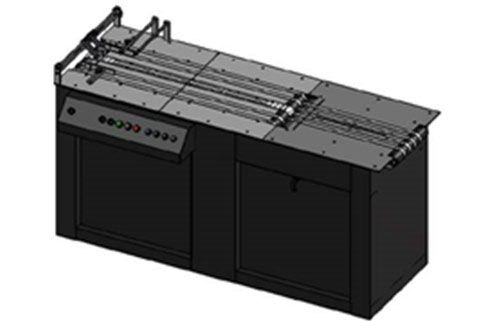

MCS 730 Base
Designed for self-mailing pieces and envelopes, the 700 series bases include 3 adjustable heat-resistant belts and 3 standard belts, 110V 15 Amp power, and electrical interfaces for feeders and conveyors are standard. All 700 series bases also include industrial T slots along the entire base for mounting various equipment including inkjet heads, cameras and dryers.
SPECIFICATIONS
| Envelopes | Self-Mailers | Sheets | Length | Max Paper Width | Belt Technology | Divert Option | Power | Intended Use | Speed | Comments |
| Y | Y | n/r | 66" | 16" | Dual drive system, 3 heat-resistant & 3 standard belts | Yes | 110V 15 Amp | Inkjet w/dryer, camera sys, | Up to 500 FPM | Separate belts for dryer |

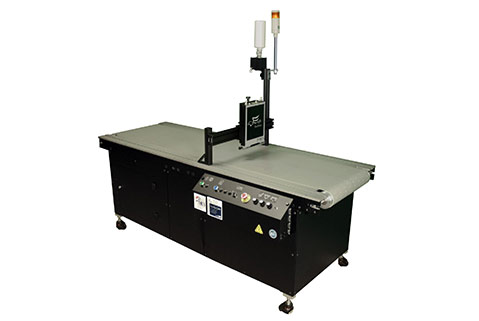

MCS 1030 Base
The MCS 1030 base offers a solid 20" vacuum belt with a length of 88". The extended length allows a 30" sheet to be completely on the belt before imaging begins, and allows the imaging to be complete before the sheet leaves the transport.
SPECIFICATIONS
| Envelopes | Self-Mailers | Sheets | Length | Max Paper Width | Belt Technology | Divert Option | Power | Intended Use | Speed | Comments |
| n/r | Y | Y | 88" | 20" | 20" Solid | No | 110V 15 Amp | Large Sheets | Up to 500 FPM | Great for large sheets and card attaching |
